Access Control

Access Control Definition - Access control a is way of limiting access to a system or to physical or virtual resources. In computing, access control.

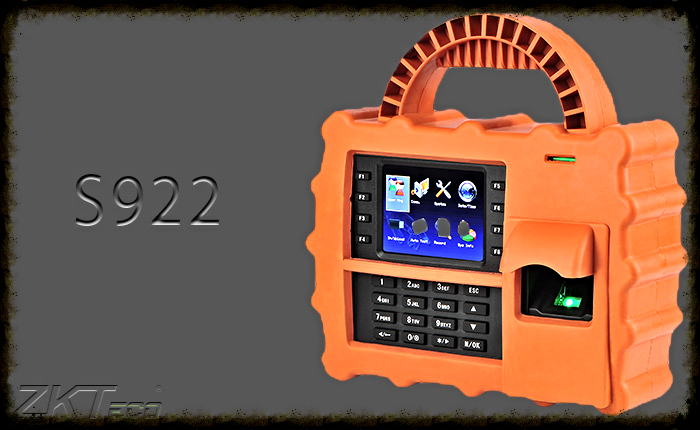

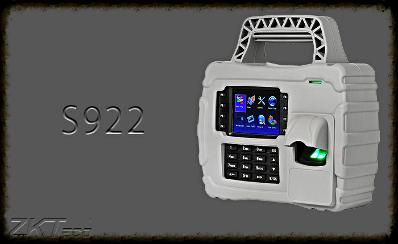

ZKTECO S922

Specifications

Fingerprint Templates 5,000
Transactions 200,000
RFID Cards 30,000
Communication TCP/IP, USB Host
Protection Grade IP65
Work Codes Yes
Functions 7600mAh Backup Battery
Optional Functions Wi-Fi or GPRS
Power Supply 12V DC 3A
Dimensions 225 x 235 x 125mm

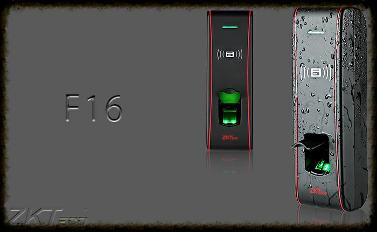

ZKTECO F16

Specifications

Fingerprint Templates 3,000
Transactions 50,000
RFID Cards 10,000
Communication RS485, TCP/IP
Wiegand Ports Input & Output
Interfaces 3rd Party locks, door sensor, exit button
Functions 50 time zones, 5 groups, 10 combinations
Anti-Passback With F12-Slave Reader
Power Supply 12V DC 3A
Dimensions 62 x 185 x 41.5mm

ZKTECO 178K Handheld Thermal Imager

Specifications

Thermal Detector  Uncooled Focal Plane
Temperature Range 30 - 45.0°C
Thermal Image Resolution 160 - 120
Software Included
Storage  Micro SD
Power  5000mAh Battery
Image Modes  Thermal, Visible, Image Blending
Dimensions 236mm x 75.5mm x 86mm

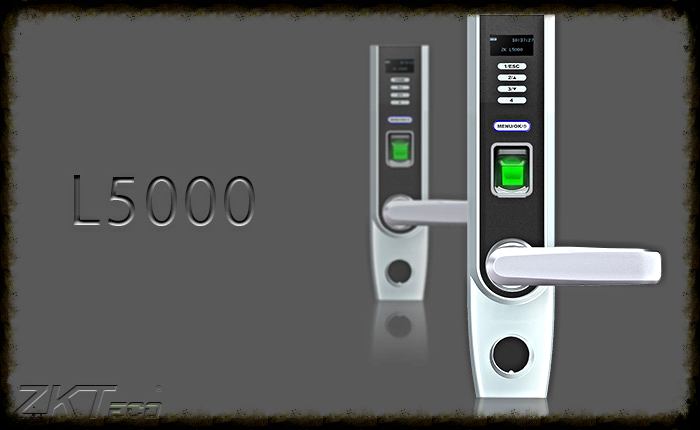

ZKTECO L5000

Specifications

Fingerprint Templates 500
Transactions 30,000
Pin Codes 100
Communication USB Host
Wiegand Ports N/A
Material Zinc Aloy
Power Supply 4 X 1.5V AA Battery
Dimensions 315 x 78 x 83mm

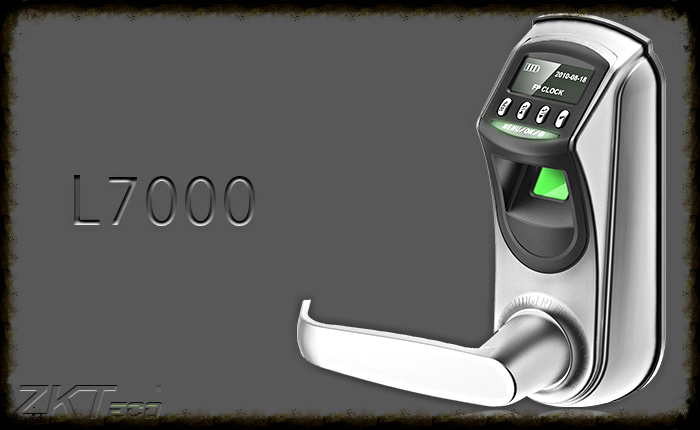

ZKTECO L7000

Specifications

Fingerprint Templates 500
Transactions 30,000
Pin Codes 100
Communication USB Host
Wiegand Ports N/A
Material Zinc Aloy
Power Supply 4 X 1.5V AA Battery
Dimensions 185 x 72 x 100mm

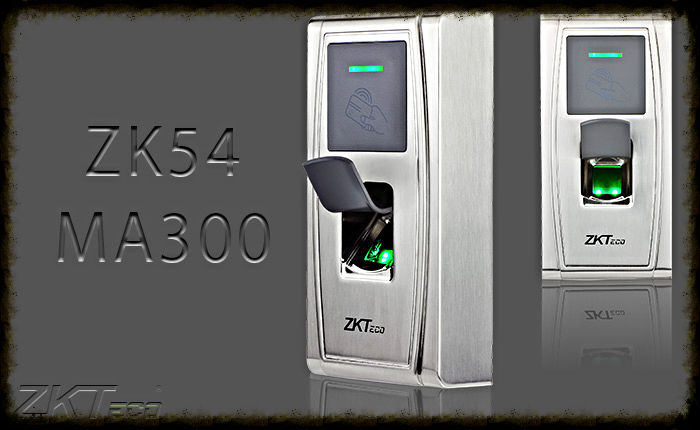

 ZKTECO ZK54 MA300

 Specifications

Fingerprint Templates 1,500
Transactions 30,000
RFID Cards 10,000
Communication RS485, TCP/IP, USB Host
Wiegand Ports Input & Output
Interfaces 3rd Party locks, door sensor, exit button
Functions 50 time zones, 5 groups, 10 combinations
Power Supply 12V DC 3A
Dimensions 75 x 150 x 36mm

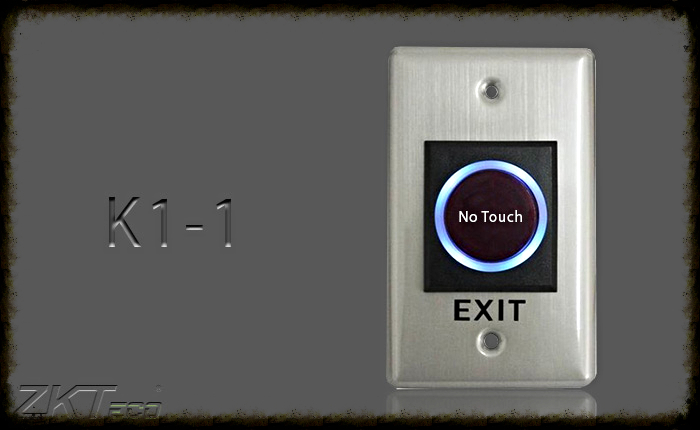

 ZKTECO K1-1

 Product Features

Touch Free exit sensor
Optical infrared technology
Easy installation
IP55 rated protection
Reverse polarity protection
High capacity of relay dry contact
User friendly
5cm Reading Distance
LED indications
Dimensions - 115 X 70 X 29mm

BOOMGATES & TURNSTILES

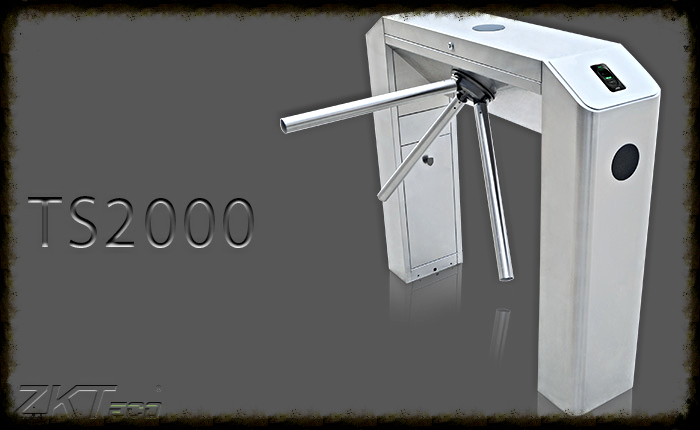

 ZKTECO TS2000

Product Features

Stainless steel design (SUS304)
Integrated controller and readers
Options available - Fingerprint or RFID or Plain
Drop arm function for emergencies
High-speed fluent access for heavy traffic
Easy installation
Replaceable placeholder for different readers
Anti-tailgate
Alloy steel tripod hub

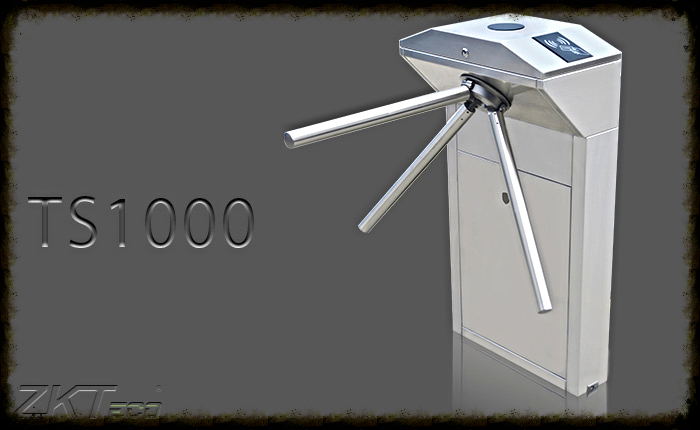

ZKTECO TS1000

 Product Features

Stainless steel design (SUS304)
Integrated controller and readers
Options available - Fingerprint or RFID or Plain
Drop arm function for emergencies
High-speed fluent access for heavy traffic
Easy installation
Replaceable placeholder for different readers
Anti-tailgate
Alloy steel tripod hub

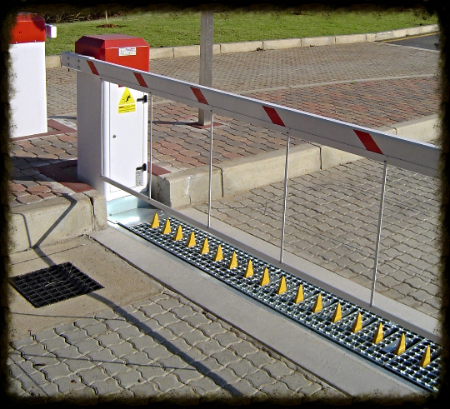

Scorpion Spike Barrier - Flush Mount

Specifications

Built-in Robot Controller for Dual Direction
Robot will turn green for right of way and red for opposite traffic.
Robot stays red if tailgating occurs.
Five Alarm Conditions
Alarm outputs, 1 sec n/o pulse output and a permanent close output.
When boom arm has been knocked off the adaptor – permanent
close output.
When the barrier door is opened – permanent close output.
When boom is held open after a vehicle has passed over the loop
– pulse output.
When boom arm is forced open – pulse output.
When the spikes are held down – pulse output.
This can be used to trigger an alarm. Switch a camera to focus on the
Spike Barrier. Can also be used to raise the spikes by means of an internal
triggering device or alert armed response.
General Features
New control panel allows for interlocking with other barrier to
create a trap barrier.
Spikes will stay up when boom arm is forced open.
Spike Barrier can be used for reversible lanes.
Spike Barrier will go into a lock down mode when the door is
opened.
Service indicator light will light up when the Spike Barrier needs
to be serviced.
Self diagnostic logic controller.
Optional Extra: High Security Lock – tamper proof door.
Optional Extra: Spring device to lower spike on power failure.

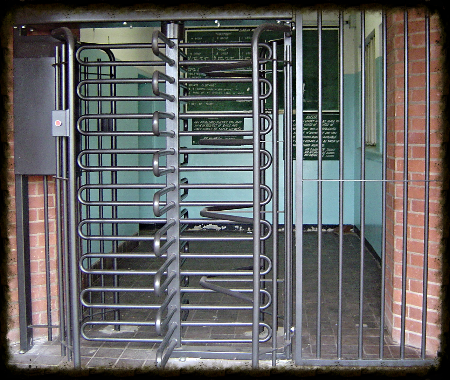

Hurricane Single Biometric Reader Mantrap Full Height Turnstile
SPECIAL OPERATING FEATURES
The turnstile logic disables the reader when locked at 0° and will only
enable the reader when the rotor is locked in 45°. When locked in 45°
the logic disables the entry and exit push buttons. A 2-way directional
relay will arm the reader for entry and exit.
The rotor will always unlock after a selectable time when locked in 45°
to ensure no person can be trapped in the turnstile unnecessarily if
the card is invalid or if the reader goes faulty. The turnstile will always
let the person out in the correct direction to ensure no unauthorised
access is gained.
The turnstile electronics remembers the sequence of events and in
case of a power failure the turnstile logic will remember the last movement
and will continue with the transaction after power is restored. The turnstile
also has a built-in tamper alarm. The logic can sense when tampering
is taking place.

Specifications

APPLICATION
Where high levels of security is required or for time and attendance
application. Because the turnstile ensures a positive entry or exit, it will
ensure that a person has entered or exited the premises.
SAFETY FEATURES
The turnstile logic will always lock the rotor at 0° to ensure a high level
of security and will always unlock the rotor at 45° to ensure users safety.
